Product overview

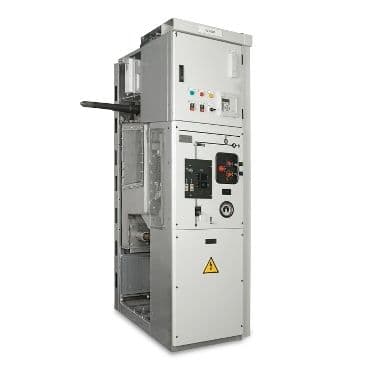

Primary GIS — GHA
GHA is Schneider Electric's gas-insulated medium-voltage switchgear designed for utilities, industrial facilities, and critical infrastructure projects requiring high reliability, compact design, and operational safety. Manufactured and integrated through Albesol's Schneider Electric partnership, GHA provides a proven solution for demanding power distribution applications.
Technical Highlights
Core ratings and platform characteristics for this solution.
Voltage Rating: Up to 40.5 kV
Current Rating: Up to 2500 A
Short-Circuit Rating: Up to 40 kA
Peak Withstand Current: Up to 104 kA
Lightning Impulse Withstand (BIL): Up to 170/185 kVp
Internal Arc Classification options
IEEE C37.20.7 Type 2B Accessibility
IEC 62271-200 compliant GIS platform
Ambient Operating Range: -5°C to +40°C standard (-25°C available on request)
Top or bottom cable entry configuration
Optional forced cooling systems
Key Features
What sets this platform apart in real-world deployments.
- Compact GIS design for space-constrained installations
- Enhanced operational safety and reliability
- Flexible cable entry and configuration options
- Suitable for brownfield, retrofit, and greenfield projects
- Internal arc resistant configurations available
- Schneider Electric engineered GIS platform
- Factory-tested and integrated by Albesol
Engineering & Support
Albesol provides engineering support, integration, SEE Electrical and ETAP studies, factory acceptance testing (FAT), relay FAT, commissioning assistance, and project-specific customization. Every project is supported from design through energization to ensure reliable long-term performance.
